Redes Comunicaciones / Cableados Especializados

 Inicio / Servicios / Redes Comunicaciones / Cableados Especializados

logo solo OKrealiza:

• Cableados estructurados de red de acuerdo a un análisis previo de su infraestructura.
Configuración de dispositivos: routers, switch y firewalls (lineas: Cisco, Mikrotik, Ubiquiti, TP-link).
Cableados UTP (cat.5, 5E,cat 6, 6A, cat 7, 7A (outdoor/indoor).

Cat. 5E = 1000 Mbps de hasta 100Mt.

Cat. 6 = 10.000 Mbps de hasta 55Mt.(pasado los 55Mt. la velocidad baja a 1000Mbps)

Cat. 6A = 10.000 Mbps de hasta 100Mt.

Cat. 7 = 100.000 Mbps

• Cableados SFTP blindado.
• Instalación y configuración de antenas Ubiquiti y Canopy.
• Puntos: eléctricos, de red y telefonía.

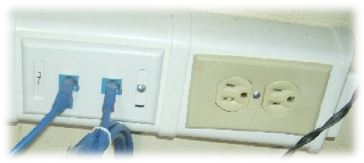

fig.1 (puntos: eléctricos y de red)

2222titled 1

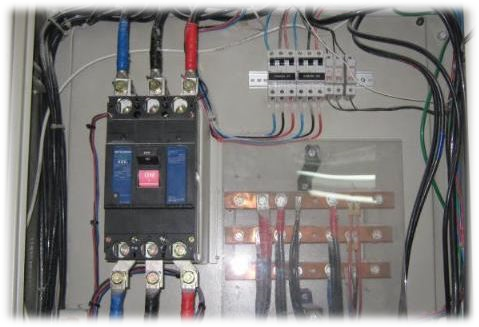

fig.2 (paneles de control eléctrico)

Untitl8885ed 1


Tipo De Red

* Punto a Punto

Esta conexión es muy útil si se desea enviar información entre una computadora a otra.

* Malla

Facilita el envió de información entre dos o más computadoras, como por ejemplo una oficina en un piso.

* Estrella

Al igual que la red en malla esta se utiliza para conectar máquinas entre sí, un sencillo ejemplo de cómo utilizar esta red seria en un sala de informática o un cibercafé.

* Árbol

Se utiliza para interconectar varias computadoras entre pisos, o en algunos casos entre un edificio a otro.

Ejemplo: Las computadoras de una oficina en un primer piso conectadas a las del segundo piso.

fig.3 (Tipos de red)



logo solo OKrealiza:

• Conexiones VPN’s remotas atraves del Cisco RV 042 u otros dispositivo dedicado VPN.
• Asignación de ip fijas públicas para conexiones remotas de sucursales.
• Conexiones entre sucursales a nivel mundial.
• Conexiones MPLS WAN.

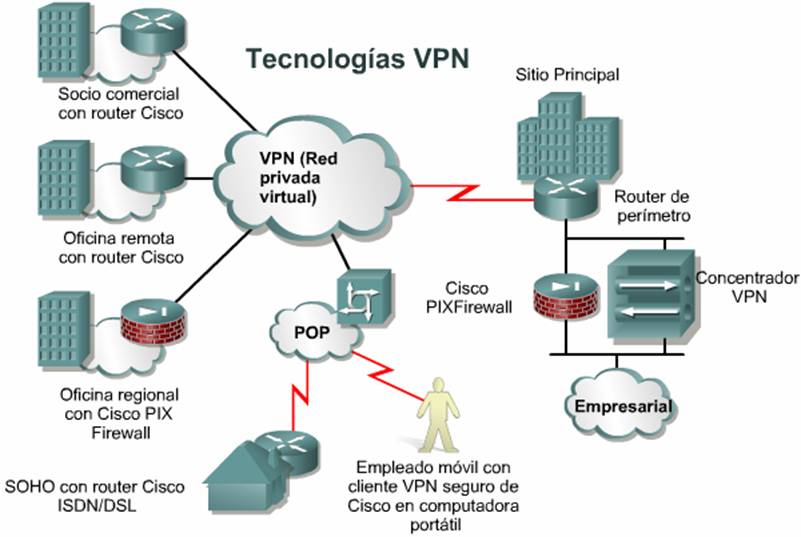

fig.1 (Estructura VPN de conexion)



logo solo OKrealiza:

• Cableados de fibra óptica.
• Certificacion de puntos de fibra.

Hay tres tipos de cables de fibra óptica usados comúnmente: monomodo, multimodo y fibra óptica plástica (POF).

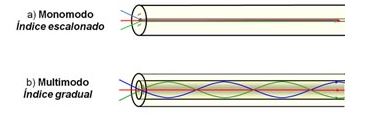

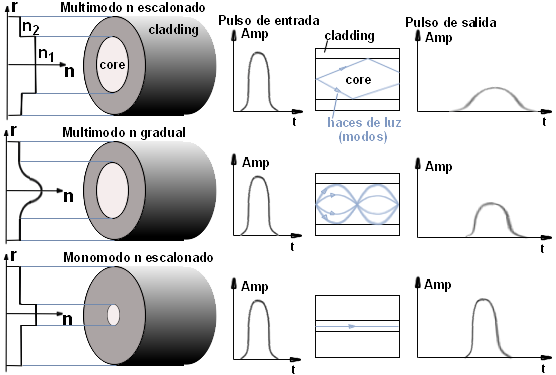

fig.1 (Tipos de Fibra)

fibra optica multimodo monomodo

fib

La fibra óptica es un medio de transmisión, empleado habitualmente en redes de datos y telecomunicaciones, consiste en un hilo muy fino de material transparente, vidrio o materiales plásticos, por el que se envían pulsos de luz que representan los datos a transmitir. El haz de luz queda completamente confinado y se propaga por el interior de la fibra con un ángulo de reflexión por encima del ángulo límite de reflexión total, en función de la ley de Snell. La fuente de luz puede provenir de un láser o un diodo led.
Las fibras se utilizan ampliamente en telecomunicaciones, ya que permiten enviar gran cantidad de datos a una gran distancia, con velocidades similares a las de la radio y superiores a las de un cable convencional.

fig.2 (Paneles de Fibra)

Untitl8885ed 1


logo solo OKrealiza:

• Instalación y configuración de centrales telefónicas Panasonic (TDA 100, 200 y 600 / TES824LA / HTS32IP).
• Empotrado de centrales telefónicas.
• Cableado de puntos de telefónicos.
• PBX para conexiones telefonicas remotas IP's.

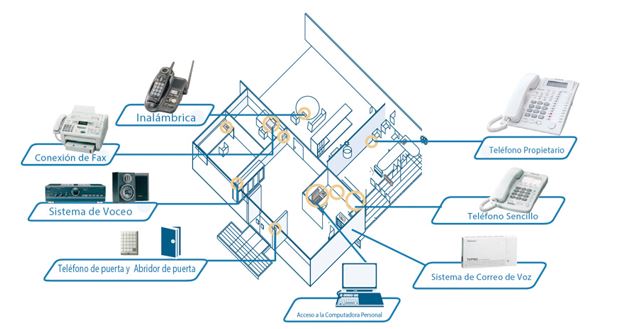

fig.1 (Conexiones Telefonicas)

tel


logo solo OKrealiza:

• Instalación y configuración de cámaras de seguridad Alambricas e inalambricas en nuestras lineas: Hikvision y Dahua.
• Instalacion de camaras de seguridad industriales PTZ.
• Instalacion de camaras de seguridad IP's para Bcos. y recintos de seguridad.
• Instalacion de camaras de seguridad IP's para cajas de cobranza.

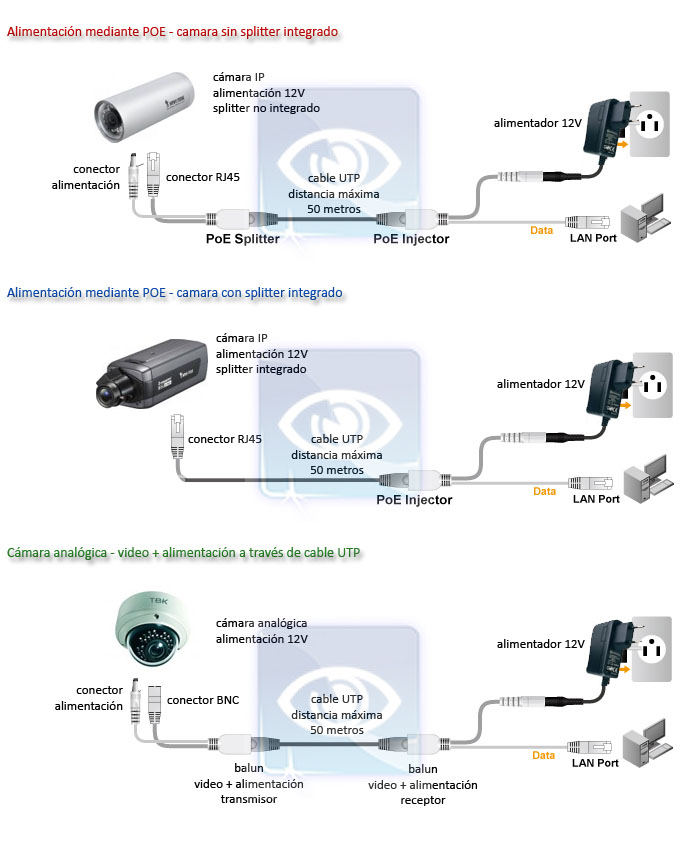

fig.1 (Instalaciones IP mediante POE)

conexiones

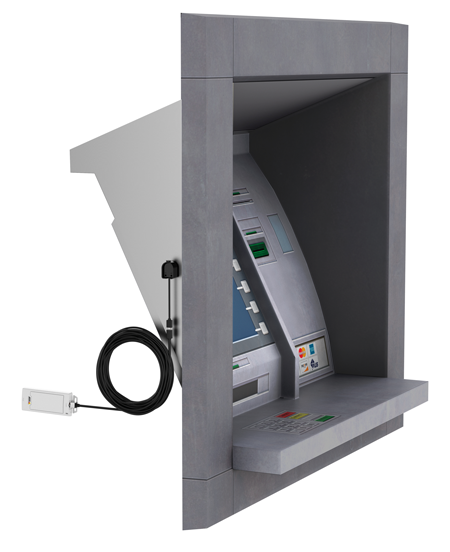

fig.2 (Camara especial para ATM's)

atm
